TOUCHSCREEN AUDIO / VIDEO / LIGHTING CONTROLLER
- Audio, video & lighting control at your fingertips
- Play music using Spotify, Tunify or your own music library
- Set the right atmosphere with our extensive lighting controls
- Simple user interface for non-technical staff
- Remotely control your business from anywhere in the world
PRODUCT KEY FEATURES
SCHEDULER
Comprehensive scheduling of video and lighting control is provided for regular promotions, advertising, ambience control, safety announcements etc.
APPS
Access a variety of third-party applications, such as Spotify and Tunify from the LIVIAU touchscreen. These built-in music platform connections grant you and your staff permanent access to an immense up-to-date music library.
NO CODE
LIVIAU S is a convenient, cost-effective alternative to the usual AV touchscreen solutions. System configuration is quick and simple, with no programming or certified training necessary.
REMOTE CONTROL
LIVIAU allows businesses to remotely control their outlets from a phone, PC or tablet. Content can be remotely dropped onto the LIVIAU’s hard disk and scheduled for playback, giving business owners confidence that the correct content is reaching customers in their stores / bars / restaurants etc.
LIGHTING
As well as regular architectural lighting, up to sixteen intelligent lighting devices may be controlled from the LIVIAU S, including moving heads, strobes, RGB devices, lasers, dimmers and more. In addition to its integral DMX512 controller, LIVIAU S also incorporates a programmable lighting mixer offering 24 cues, 16 fixtures, a sequencer with fade time and an effects generator with pan & tilt.
VIDÈO
LIVIAU’s ability to handle multiple video files for promotions / announcements is a powerful asset in retail, worship, hospitality and commercial environments. Content can be looped and may be scheduled and / or triggered from the touchscreen. Videos can be sourced from networked devices, USB or onboard memory.
AUDIO
LIVIAU S features two balanced mic and four line level inputs, plus two inputs sourced from the HDMI input connector. Two additional internally sourced audio inputs are provided for routing internally stored audio. Six balanced line level outputs are provided, plus the outputs of the internal 50W/channel stereo amplifier and internally sourced audio files. All inputs can be combined and routed to any output using the audio mixing page.
AUTOMATION
Featuring 6 GPO & 2 GPIO connections, LIVIAU S can function as a simple room automation system. The integrated event scheduler enables the user to trigger external systems such as electrical screens and drapes, heating systems, projector screens, etc. at specific times.
TECHNICAL SPECIFICATIONS
DISPLAY
- 10.1″ multi-touch capacitive screen
- Ambient light sensor for backlight control
VIDEO
- Input: 1 x HDMI 1.4a, 1920 x 1080 p
- Output: 1 x HDMI 1.4a
AUDIO
- Mic inputs: 2x balanced
- Line inputs: 4x balanced
- Line outputs: 6x balanced
- Power amplifier outputs: 2 x 50W into 4 Ohms

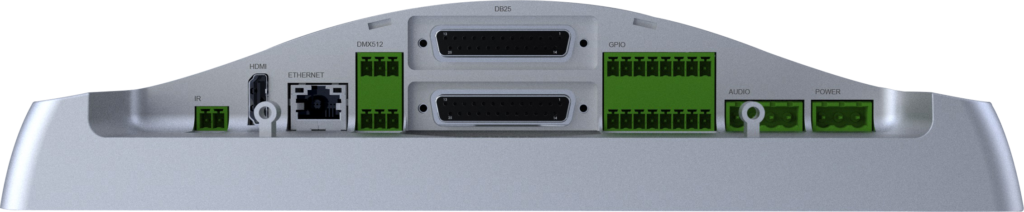

COMMS
- Network: Gigabit Ethernet port
- USB: 1 x USB Type ‘A’
- Wi-fi: Compliant with 802.11 a/b/g/n, 2.4/5.0 GHz MIMO
OTHER
- Lighting control: DMX 512, GPI/O
- GPIO: 8
- Serial port: RS-232C, bi-directional
- Infra red port: 1 x IR, for standard IR LED emitter
- Power requirements: 24 V dc @ 6 A max., via supplied AC PSU
